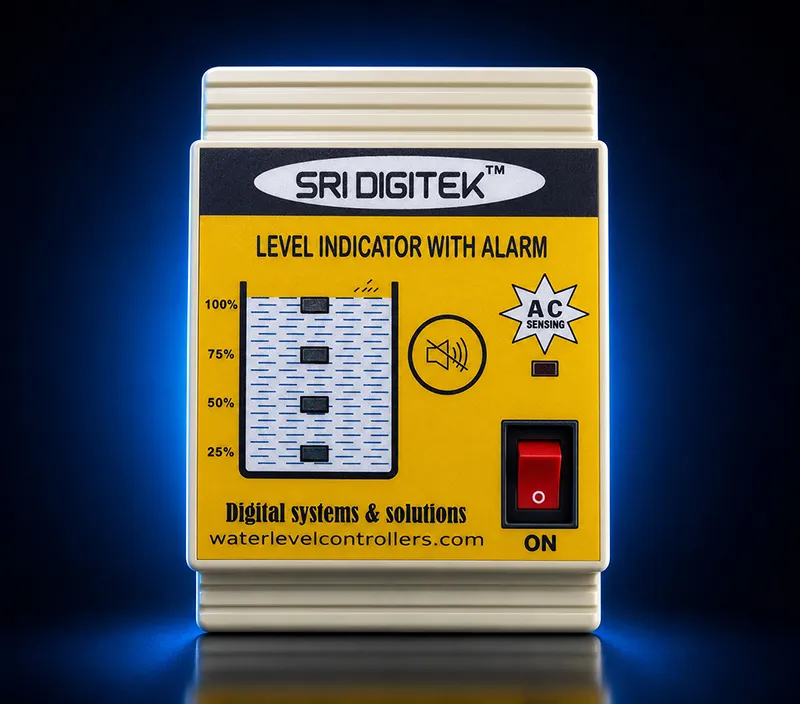

Sri DIGITEK® Basic Water Level Controller with Indicator
The ECO-01 is the simplest basic water level controller with an indicator, designed as the most economical and energy-efficient product from Sri Digitek. It automatically switches the pump on or off to maintain predefined water levels in storage tanks.
How this model fits your system
- 01Underground sump
- 02Monoblock pump
- 03Overhead tank
Conceptual application view. Confirm the pump, starter, sensors and tank arrangement before installation. Refer to the model’s wiring instructions.
⚙️ Key Features & Basic Capabilities
Reserve / Empty Auto-Start
When the overhead tank is in reserve mode or empty, it automatically starts the motor if water is present in the sump tank.
Pipeline Flow Indicator
Indicates water presence on the unit when flow is active in the pipeline.
Pipeline Leakage & Blockage Tracking
Tracks water progression reaching the tank, helping spot open taps, blockages, leaks, or damages in pipelines.
Low AC Voltage Sensing Circuit
Avoids electrode polarization in water using long-life stainless steel plastic molded conductive electrodes that require no frequent cleaning or replacement.
Basic Visual Indications
Features 2 green-colored sump level indications (foot valve level & half tank) and 2 overhead tank indications (half tank & full tank), plus power and dry-run lights.
Manual & NEED Controls
Includes a rocker switch to select Auto/Manual operation and a soft-touch 'NEED' button to switch ON the motor irrespective of overhead tank levels.
📋 Technical Specifications
| Model Code | ECO-01 (Basic Series) |
|---|---|
| Manufacturer | Smart Care Systems |
| Compatible Application | Monoblock pumps (sump motors) |
| Overhead Tank Levels | 2 Level Indications (Half Tank & Full Tank) |
| Sump Tank Levels | 2 Level Indications (Foot Valve Level & Half Tank) |
| Sensor Type | Stainless Steel Plastic Molded Conductive Electrodes (Low AC Sensing) |
| Operation Control | Auto/Manual Rocker Switch & Soft-touch 'NEED' Button |
🏡 Ideal Applications
Monoblock Sump Motors
Designed specifically as an economical solution for standard single-phase monoblock sump motor applications.
Basic Residential Tanks
Simple half-tank and full-tank level management for homes requiring straightforward automated filling.
Energy-Efficient Setups
The most basic and low-power water level controller configuration from Sri Digitek.
