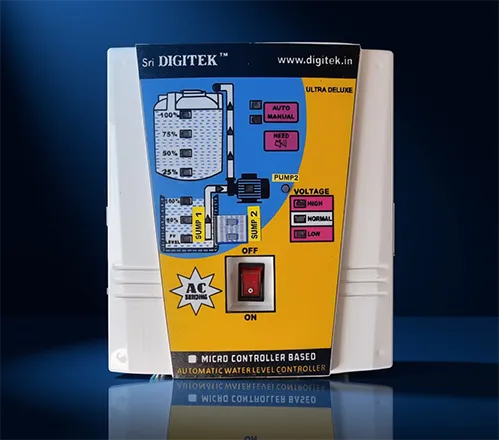

Sri DIGITEK® Dual Sump Dual Pump Automatic Controller
The Sri DIGITEK® ULDX-DM-DS-06 is a master multi-source controller designed for complex water distribution setups. It simultaneously monitors 2 independent underground sumps (e.g., Municipal Sump & Borewell Sump) and manages 2 dedicated pumps feeding overhead distribution tanks with intelligent auto-routing logic and complete dry-run protection.
⚙️ Key Features & Engineered Advantages
Multi-Source Intelligent Routing
Monitors water availability in both Sump 1 (Municipal Supply) and Sump 2 (Borewell/Secondary Sump), automatically selecting the best available water source to fill overhead tanks.
Dual Motor Independent Safety
Features separate contactor/relay channels for both pumps with individual dry-run cutoffs, ensuring if one sump dries out, the second pump takes over automatically.
Comprehensive LED Status Control Matrix
Visual status panel displays real-time levels for both sumps and overhead distribution tanks along with individual motor ON/OFF and fault indicators.
Built-In Voltage & Surge Protection
Monitors line voltage continuously. Disconnects both pumps safely if voltage drops below 180V or exceeds 260V AC, auto-restarting once grid power stabilizes.
Corrosion-Free SS316 Probes
Uses high-grade stainless steel sensors with low AC sensing voltage across all tanks, eliminating mineral buildup, rusting, and frequent cleaning.
Individual Manual Overrides
Includes hardware bypass switches and manual override toggles for both pumps, allowing independent manual operation during maintenance.
📋 Technical Specifications
| Model Code | ULDX-DM-DS-06 (Sri DIGITEK® Dual Sump Dual Pump) |
|---|---|
| Manufacturer | Smart Care Systems |
| Source Monitoring | 2 Independent Underground Sumps / Water Sources |
| Pump Capacity | Controls 2 Single-Phase or 3-Phase Motors (up to 3 HP each) |
| Power Supply | 230V AC Single Phase / 415V AC Three Phase Options |
| Relay & Contactor Rating | Dual Heavy-Duty 30 Amp Relays / Contactor Outputs |
| Voltage Cutoff Range | 180V to 260V AC Automatic Cut-off & Recovery |
| Protections Included | Dual Dry-Run Cutoff, High/Low Voltage Protection, Auto Source Routing |
| Sensor Type | SS316 Stainless Steel Probes with AC Sensing Circuitry |
🏡 Ideal Applications
Apartment Complexes
Ideal for multi-story residential apartments utilizing both municipal water sumps and secondary borewell sumps.
Gated Communities & Villas
Manages central dual-sump storage reservoirs and dual pump delivery systems effortlessly 24/7.
Commercial Facilities
Ensures zero downtime water supply for hotels, hospitals, and commercial complexes with redundant pumps.
