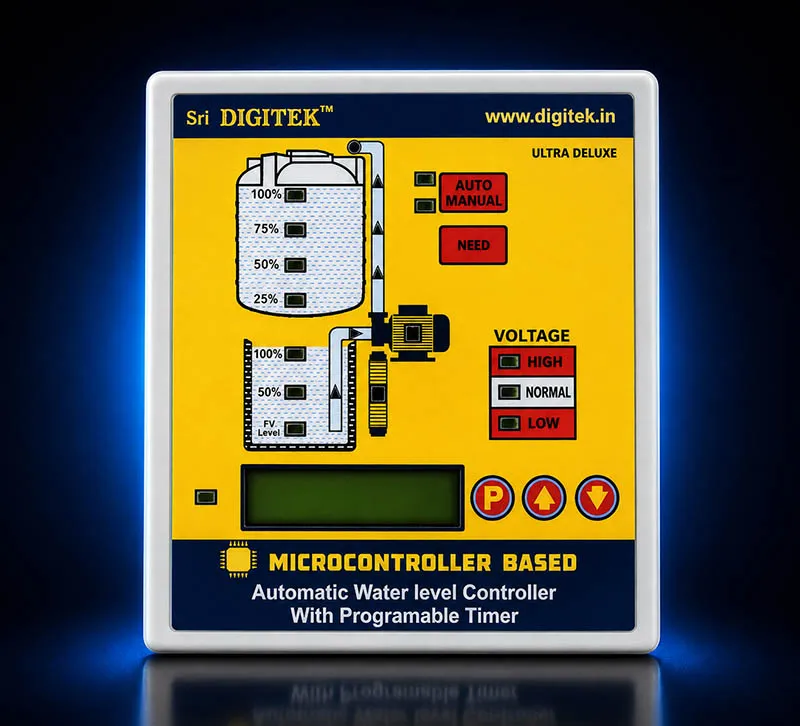

Sri DIGITEK® 3-Phase Automatic Water Level Controller with Programmable Real-Time Timer
The ULDX-DR-3PH-PR-8P-04 is an advanced real-time programmable automatic water level controller and panel driver engineered for 3-phase submersible motors[cite: 11]. Featuring up to 8 daily scheduled time programs, it supports dual flexible configuration models to handle precise scheduling and automated tank-fill cycles[cite: 11].
⚙️ Key Features & Dual Programmable Models
Model 1: ON-Time Scheduled Mode
Set custom ON-times up to 4 times per day. The pump switches ON automatically according to the scheduled time and switches OFF when the overhead tank gets completely filled to 100%.
Model 2: Complete ON & OFF Scheduled Mode
Set precise individual ON-times and OFF-times up to 4 ON times and 4 OFF times per day, allowing the pump to switch ON and OFF strictly according to set clock intervals.
Advanced Low AC Voltage Sensing
Avoids electrode polarization in water using long-life stainless steel plastic-molded conductive sensors requiring no frequent cleaning[cite: 11].
Dry-Run & Source Protection
Automatically shuts off the motor and signals a fault if running dry due to faulty foot valves, pipe air leaks, or low source conditions[cite: 11].
3-Phase Voltage Cut-Off Range
Automatically cuts power if supply voltage drops below 360V or crosses 500V AC across phases[cite: 11].
Comprehensive Visual & Controls
Includes 4-stage overhead tank level indicators, water flow status, voltage level display, Timer Mode status, LCD interface, and Hour/Minute program buttons[cite: 11].
📋 Technical Specifications
| Model Code | ULDX-DR-3PH-PR-8P-04 (Programmable Timer Controller)[cite: 11] |
|---|---|
| Manufacturer | Smart Care Systems |
| Compatible Motors | 3-Phase Run Submersible Motors & Borewell Panels[cite: 11] |
| Timer Programming | Up to 8 time programs per day (Daily repeating cycle)[cite: 11] |
| Operational Variants | Model 1 (4 ON-Times with 100% Tank Cut-Off) | Model 2 (4 ON-Times & 4 OFF-Times Scheduled) |
| Working Voltage Cut-Off | Below 360V AC or Above 500V AC[cite: 11] |
| Sensor Technology | Stainless Steel Plastic Molded Conductive Electrodes (Low AC Sensing)[cite: 11] |
🏡 Ideal Applications
Timed Agricultural Irrigation
Perfect for scheduled farm pumping cycles during designated electrical supply windows.
Commercial & Industrial Complexes
Automates multi-shift water supply routines across heavy-duty 3-phase machinery[cite: 11].
Apartments with Restricted Power Hours
Ensures reservoirs fill precisely during municipal water supply timings or scheduled grid hours.
